Instrument panel
The instrument panel display screen can display working hours, fuel volume, water temperature, oil pressure, battery voltage, etc., making it easy to observe the health of the machine.
-
Oil cylinder mounted on top
The newly upgraded oil cylinder is above the boom to prevent the oil cylinder from being bumped during work,the hidden oil pipe design makes the appearance neat and beautiful.
-
Adjustable track
Standard structure telescopic function, telescopic range 820-1020mm, 180mm wide engineering track.
-
Swing boom
Standard big arm side swing function, cast iron side swing head, beautiful anddurable.
-
Control System
Convenient travel, dozer blade and chassis telescopic control joystick
-
Hydraulic safety lock
1. Double-sided hydraulic safety locks ensure safe operation when getting on and off the vehicle on both sides 2. Large tilt angle makes getting on and off the vehicle more convenient
-
Armrest box hand rest
The armrest box has a height-adjustable armrest support, which has excellent ergonomics and is suitable for different drivers.
-

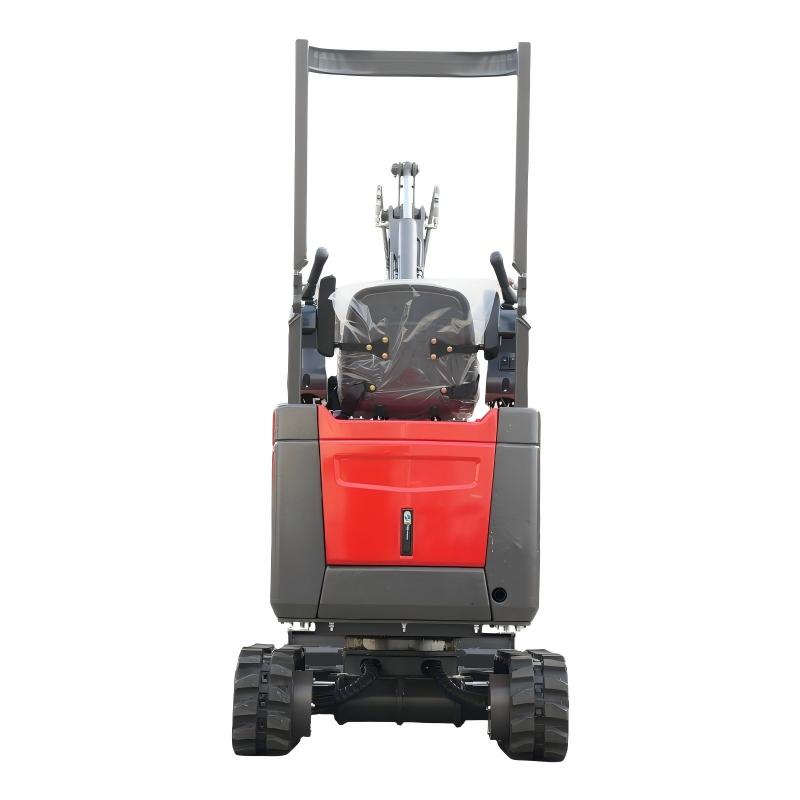

Tail can be opened
Convenient inspection and maintenance 2、Three cast iron counterweights to ensure balance during work
-
The entire vehicle adopts a molded appearance
The entire vehicle adopts a molded appearance, which is d p u u r b a l b i l c e ae a s n t d he i t n ic l s i . ne It wit i h s also convenient for maintenance and repair. It has a four-leg anti-roll roof. The entire vehicle is made of Q355 manganese steel plate, variable plunger pump, load-sensitive multi-way valve, and the action is soft and efficient.

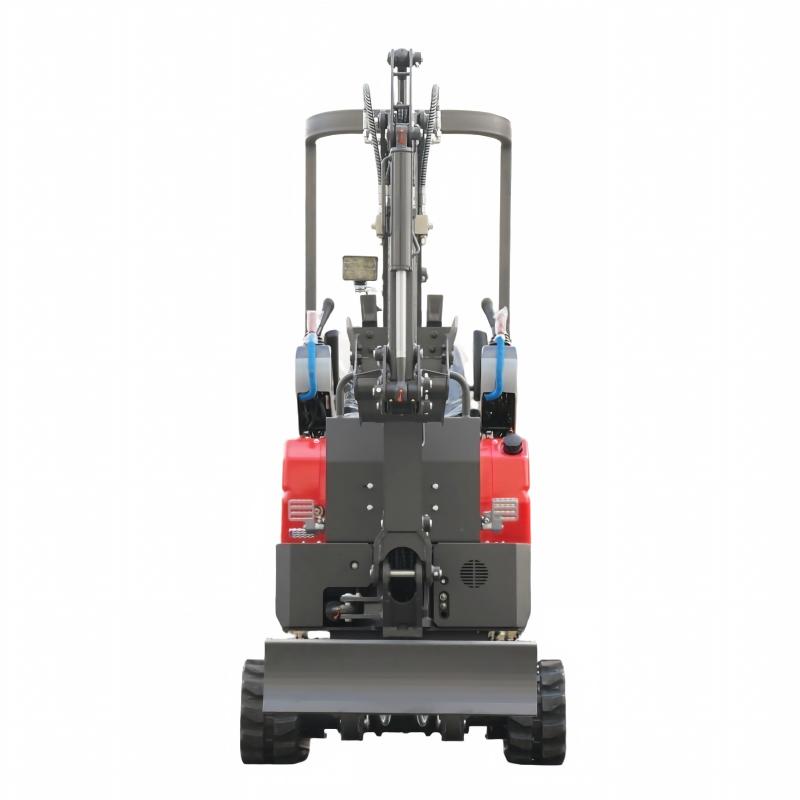

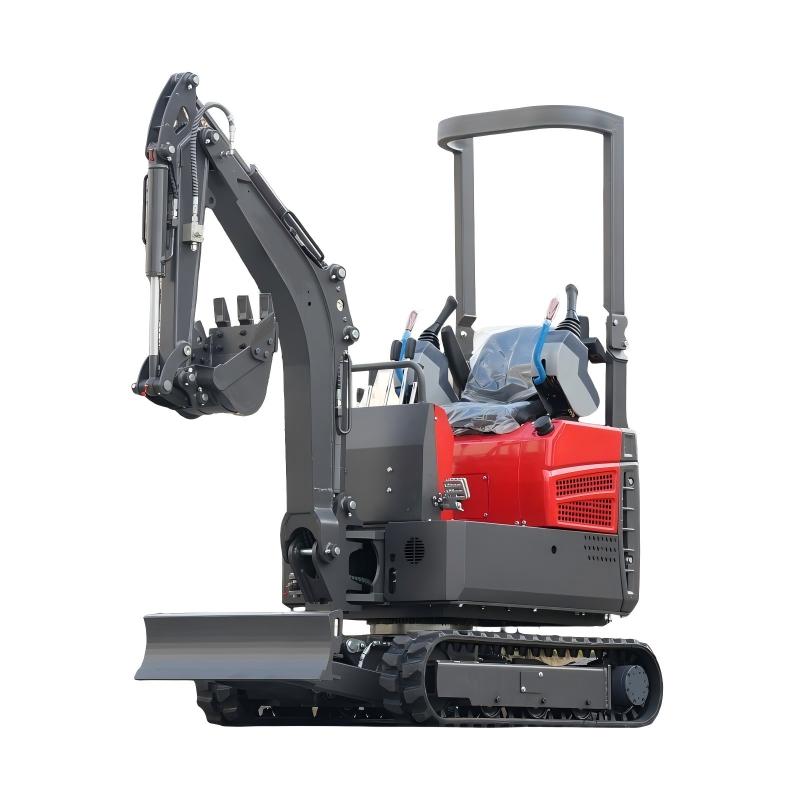

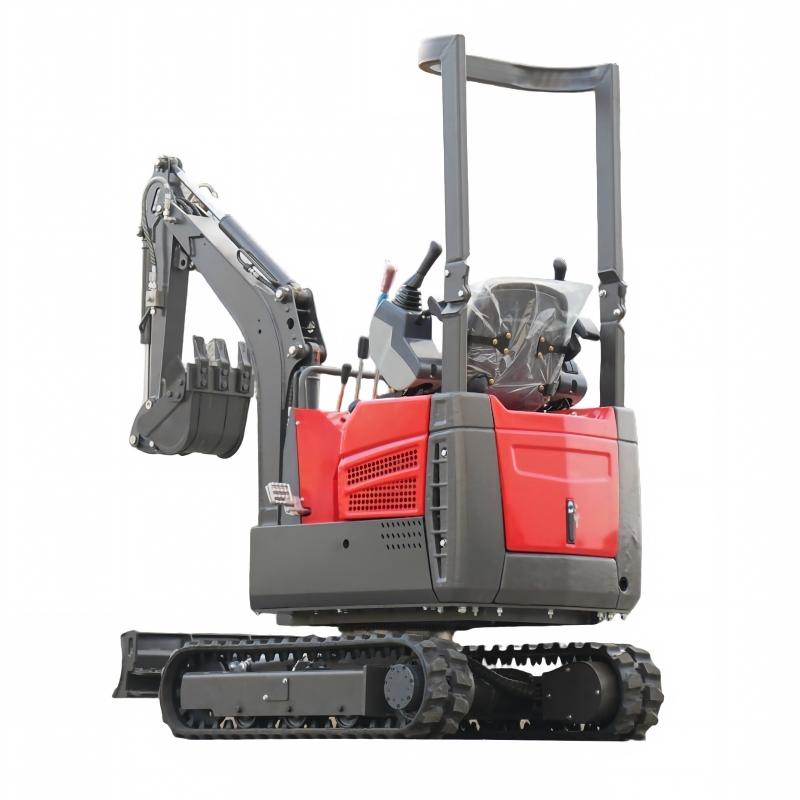

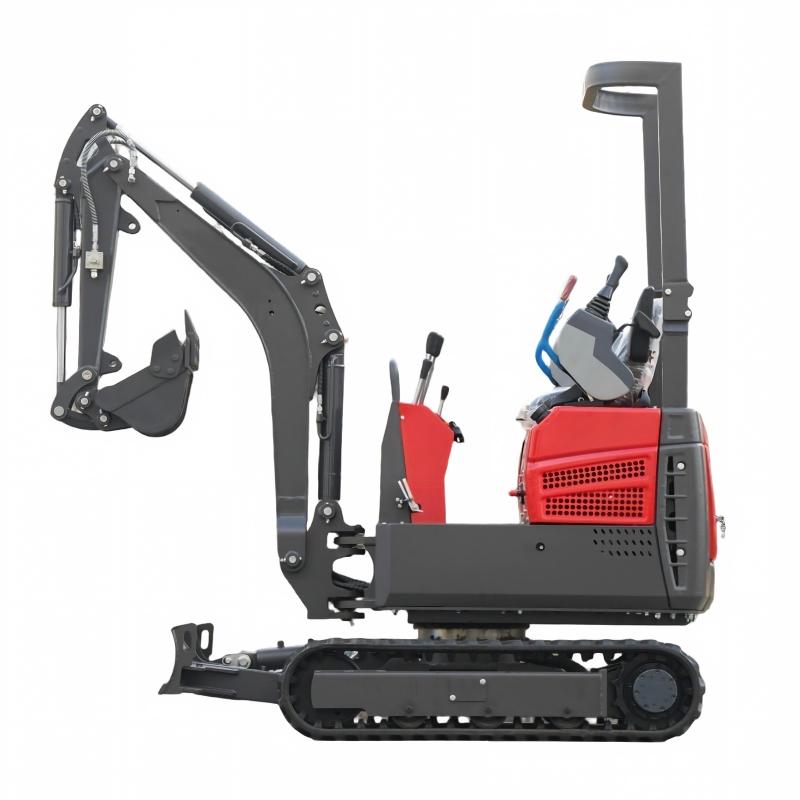

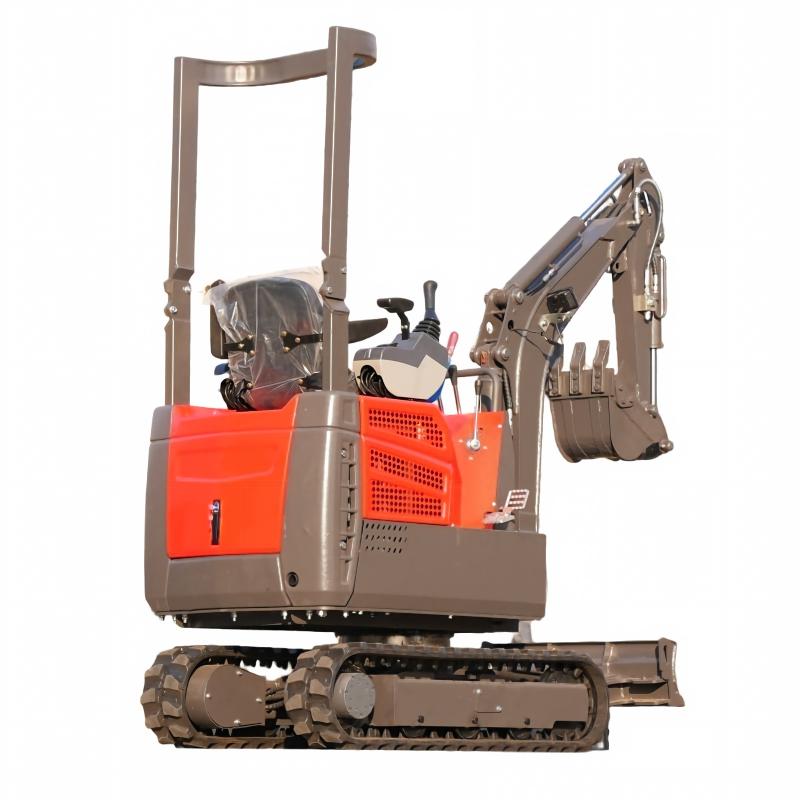

Mini Excavator
K13
This machine is specifically designed for confined spaces and is suitable for use in orchard greenhouses, farmland renovation, municipal maintenance, indoor demolition, landscaping, and residential yard projects. Its compact body allows for agile maneuvering in restricted areas—such as corners and narrow passageways—enabling it to replace manual labor for tasks like excavating, trenching, leveling, and breaking, making it a versatile, multi-purpose machine.
Weight :
1250KG
Engine :
Kubota Z482
Pump :
Taifeng Plunger Pump
전화하기
+8619323138308제품 설명서
견적 받기
특징
매개변수
| Model | K13 | D-Overall height(to top of cab)(mm) | 2265 |
| Operating weight | 1250 | E-Counterweight ground clearance(mm) | 430 |
| Bucket capacity | 0.025 | F-Min.ground clearance(mm) | 80 |
| Engine model | Kubota Z482 | G-Tail swing radius(mm) | 821 |
| Rated power (kw/r/min) | 8.3 | H-Track ground length(mm) | 1250 |
| Hydraulic pump model | piston pump | J-Track length(mm) | 1393 |
| Max.flow (L/min) | 30 | K-Track gauge(mm) | 640(840extend backward |
| Working pressure(Mpa) | 19.5 | L-Track width(mm) | 820-1020 |
| Control valve model | Load Sensing Valves | M-Track shoe width(mm) | 180 |
| Swing motor model | BM2 | N-Turntable width(mm) | 820 |
| Travel motor model | Two-speed motor | O-Max.digging height(mm) | 2771 |
| Fuel tank capacity(L) | 15 | P-Max.dumping height (mm) | 1917 |
| Hydraulic oil tank capacity (L) | 15 | Q-Max.digging height (mm) | 1665 |
| Travel speed (km/h) | 1.8-4.0 | R-Max.vertical wall digging depth(mm) | 1593 |
| Swing speed(r/min) | 12 | T-Max.digging reach(mm) | 3189 |
| Max.climbing degree(%) | 58 | U-Max.digging reach at ground level (mm) | 3189 |
| Arm digging force | 7.6 | V-Min.swing radius(mm) | 1387 |
| Bucket digging force(KN) | 12.5 | X-Distance between center of rotation and tail length(mm) | 821 |
| Average grounding pressure(Kpa) | 33 | Y-Track shoe thickness(mm) | 一 |
| Largest traction(KN) | 19 | Z-Height of counterweight (mm) | 480 |
| A-Overall length(mm) | 2880 | Deflection angle left°/right° | 56°/57° |
| B-Overall width(mm) | 820-1020 | Maximum dozing height/depth (mm) | 185/226 |
| C-Overall height(to top of boom)(mm) | 2118 |
